Carbon 8-Channel LoRa Gateway
8-Channel LoRa Gateway
Long-Range Connectivity Made Easy

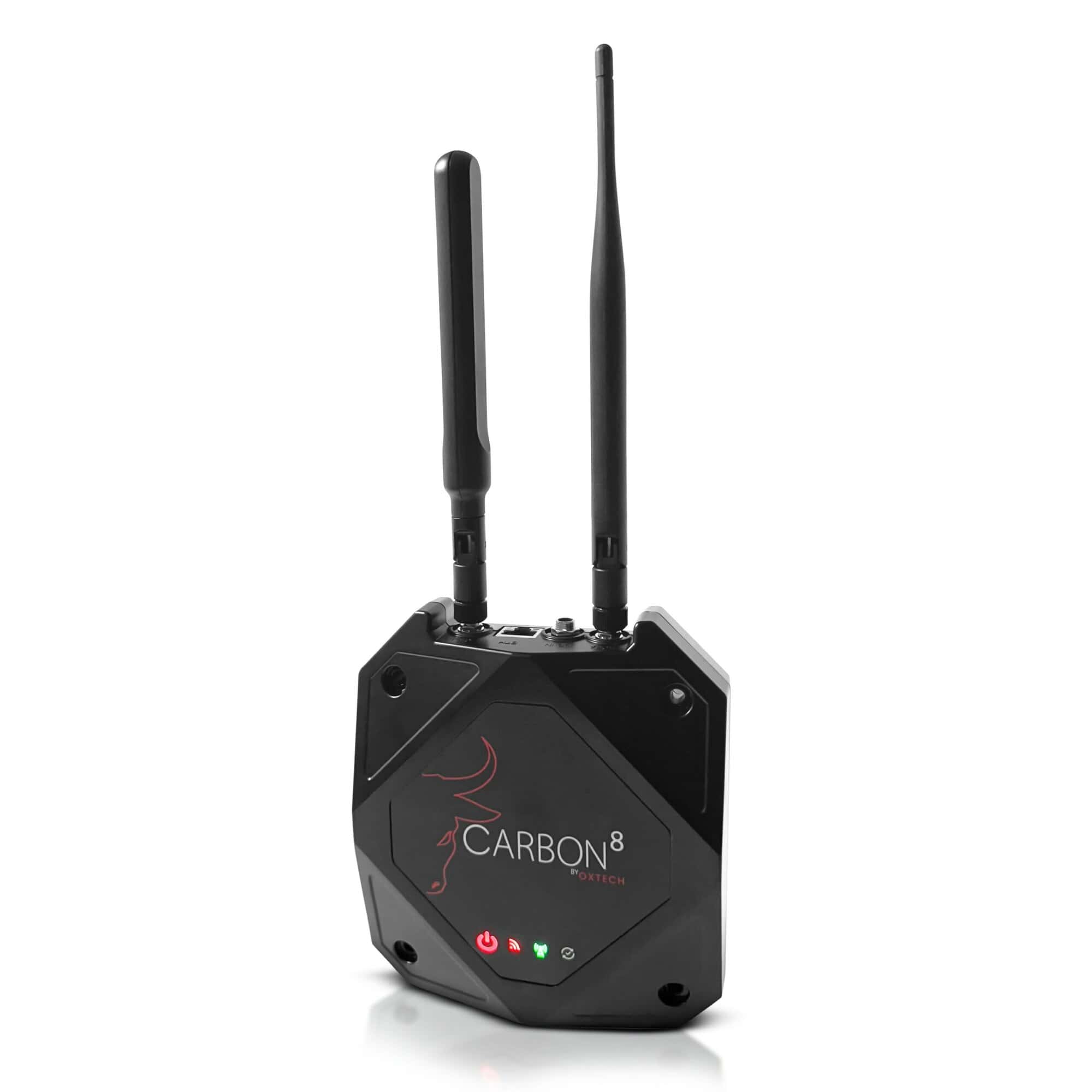

The OxTech Carbon 8-Channel Gateway is a highly scalable and customizable LoRaWAN compatible gateway used to construct public or private networks for capturing and analyzing critical data.
Up to 10-mile wireless range maximizes your investment requiring fewer gateways to build your network.
Ensure future sensor and network
integrations with OTA updates, extensive customization options, and multi-network compatibility.
- Powered by the Semtech SX1303 Integrated Chipset
- LoRaWAN Class A/B/C
- Integrated wall-mount installation
- Pre-configured for the OxTech Dashboard
- Built–in Battery Backup
- Indoor Class B option*
- Local integrated LoRa Network Server (LNS)**
Industrial-grade components and ultra- low power requirements minimize the need for hands-on maintenance and
reduce device downtime.

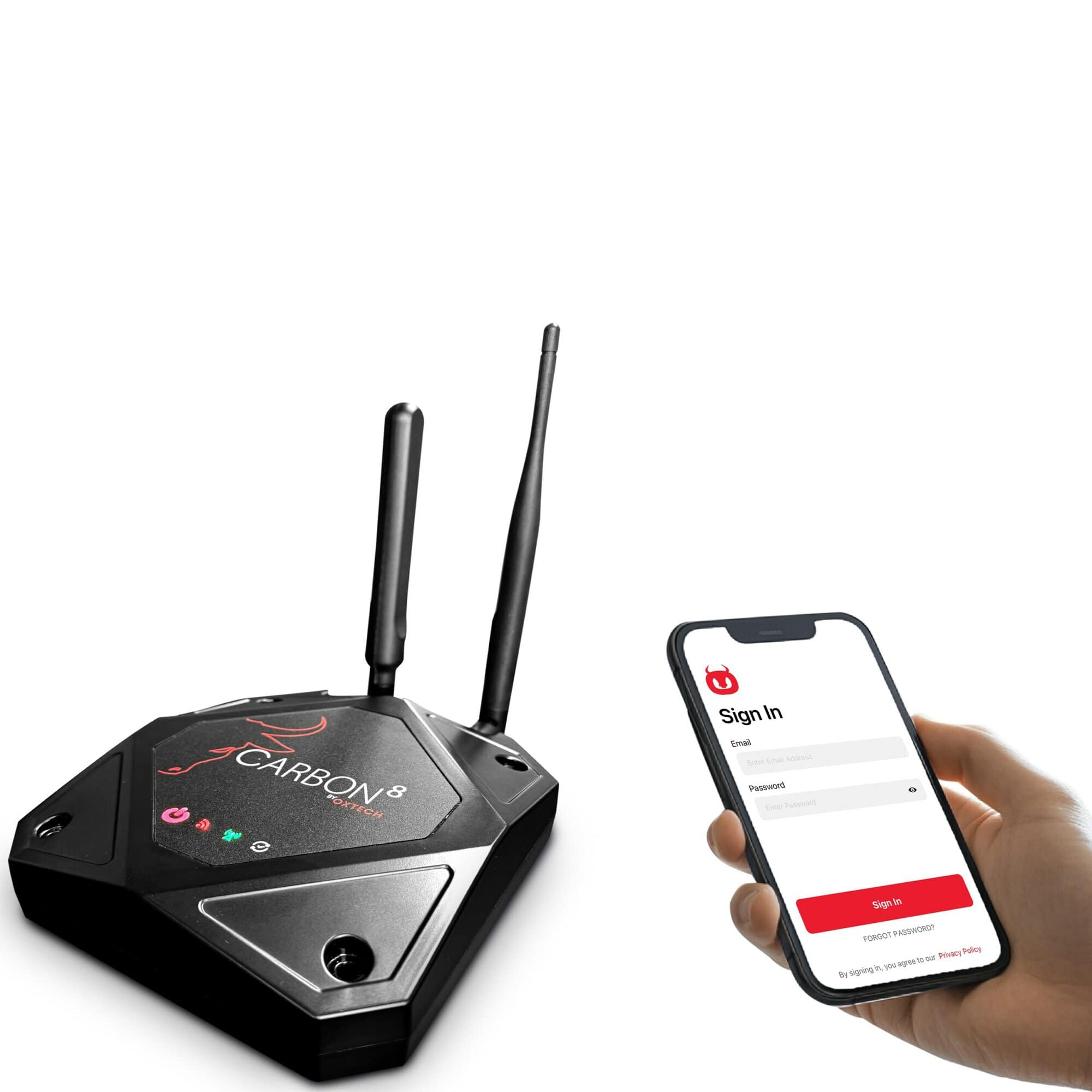

Intuitive installation, flexible mounting options, easy app-based setup and configuration with cellular activation reduce on-site provisioning time.
|Processor | Memory||Dual Core XtensaR LX6 | 16 MB flash|
|Wi-Fi||802.11 b/g 2.4 GHz|
|Bluetooth||Bluetooth v4.2 BR/EDR and Bluetooth LE specification|
|Cellular||LTE-M (Cat M1), NB-IoT (Cat NB2)|
|GPS/GNSS||GLONASS, Galileo, GPS, QZSS, Beidou + POLTE|
|LoRa Network Capacity||8 Channels; up to 1000+ simultaneous devices|
|LoRa||North America: US915 (902-928 MHz) High sensitivity: -132 dBm minimum|
|e-SIM||2G/GPRS, 3G HSPDA, 4G LTE, LTE CAT-M1**|
|SIM Card||4FF/Nano (8.8 x 12.3mm) SIM card|
|Battery Backup*||Li-ion 18650 3.7V 2600 mAh Rechargeable Battery|
|Security||Secure boot with ECDSA Public/Private key pair Hardware-based secure element Proprietary firmware encryption|
|Input Voltage||12VDC @ 2.0 A|
|Antennas||LoRa (915): 2.8dBi 8" (200mm) Omnidirectional Cellular: 5dBi 8" (200mm) Omnidirectional GNSS: Internal with wireless external support|
|Certifications||CE | FCC|
*Optional ** Limited coverage availability for LTE CAT-M1.
|Dimensions||5.5" x 6.25" x 1.25" (140 x 158 x 31.7mm) without Antenna|
|Weight||0.74 lbs (11.9oz / 336g)|
|Enclosure||Carbon Fiber Reinforced Composite, IP54 Rated|
|Operating Temperature||32° to 140° F (-0 to 60 °C)|
|Storage Temperature||-40° to 300° F (-40 to 150 °C)|
|Humidity||10% to 90% RH (Non-condensing)|
Prototype specifications and images shown. Production models may vary.
